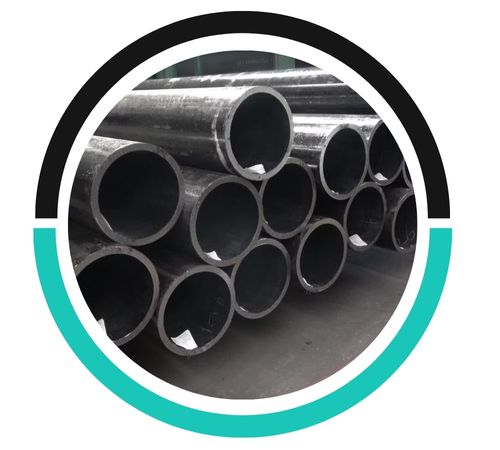

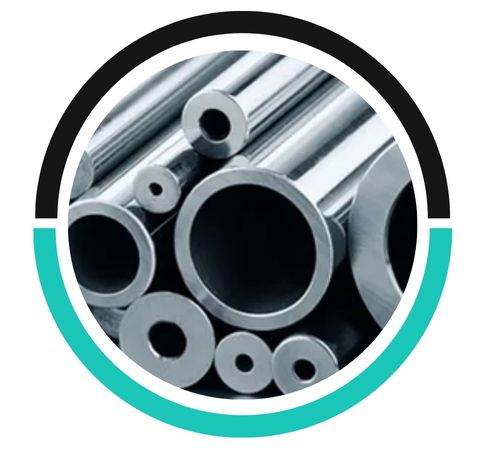

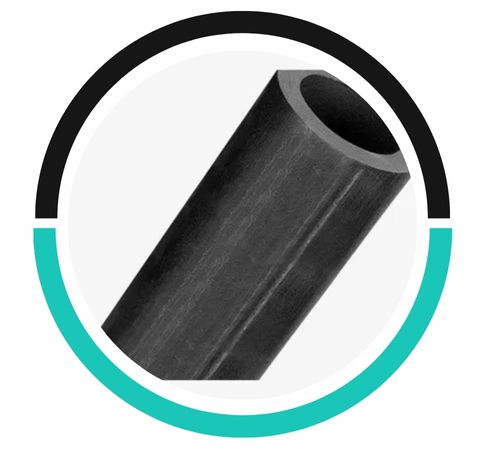

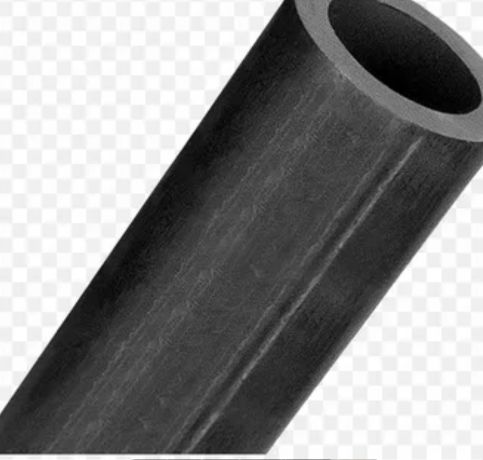

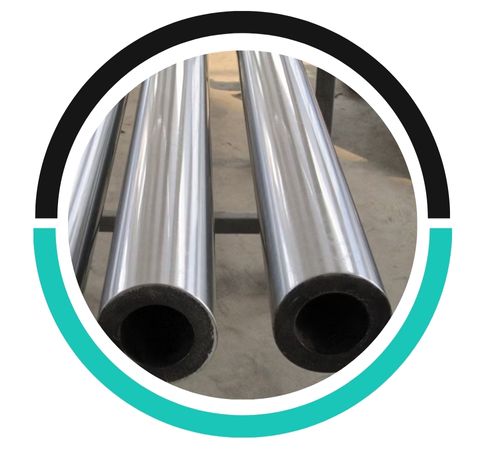

Chung Metal offers Carbon Steel Hollow Bars — cylindrical steel members with a hollow center — intended for structural, mechanical, and machining purposes. The bars minimize material weight while offering high strength and rigidity. Manufactured in diverse grades and tempers, they are made in hot-rolled, cold-drawn, or normalized conditions to suit different industrial requirements.
Typical carbon content: 0.25–0.60%. Tensile strength: 400–700 MPa; yield strength: 250–500 MPa; elongation: 10–25%. The bars have good machinability, moderate hardness, and good weldability in low-carbon types. Increased carbon content provides better wear resistance and strength.
| Grade | Carbon Steel |
|---|---|
| Carbon Steel Square bar size | 4 to 100mm |
| CS Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Low Carbon Steel Hex Bar size | 2-100mm A/F |
| Carbon Steel Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| CS Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Low Carbon Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Carbon Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| CS Section | 3.0 to 12.0mm thickness |
| Low Carbon Steel Round bar size | Diameter: 3-~800mm |
| Carbon Steel Billet Size | 1/2″ to 495mm Diameter |
| CS Round Bar Standard Dimensions | Diameter / Height: Carbon Steel Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
| Carbon Steel Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| CS Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Low Carbon Steel Technique | Carbon Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Carbon Steel Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Carbon Steel Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Carbon Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
|---|---|---|---|---|---|
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
Yes, many manufacturers and suppliers offer carbon steel hollow bars in custom sizes and polishes. Specify your requirements to ensure the product meets your exact needs for applications.
Carbon steel hollow bars are offered in finishes like as-rolled, annealed, normalized, normalized and tempered, quenched and tempered, polished, and precision machined, tailored for structural, mechanical, or machining applications.
Utilized in hydraulic cylinders, mechanical shafts, load-carrying components, machine bushings, and auto parts. Also suitable for mining and construction use where strength-to-weight ratios are desired high. Hollow bars provide fluid or wiring passage and minimize mass in dynamically loaded components.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
