Chung Metal provides a broad array of Hastelloy Bars and Rods in different grades (e.g., C‑276, C‑22, B‑2, B‑3, etc.), designed for intense corrosion resistance, high temperature stability, and mechanical strength in aggressive chemical, marine, and process environments. A particular grade is chosen based on needed resistance to oxidizing or reducing environments, acid types, temperature, and mechanical load. The bars/rods are manufactured with very stringent quality control, proper forging/extrusion, and finishing to provide specification requirements.
All Hastelloy grades are nickel‑based with high chromium, molybdenum, optionally tungsten, and low carbon. Tensile strengths usually ~500‑750 MPa depending on the grade and condition; yield strengths lower; elongations moderate; excellent pitting, crevice, stress corrosion resistance; high melting points (1300‑1450 °C); density ~8.8‑9.2 g/cm³.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

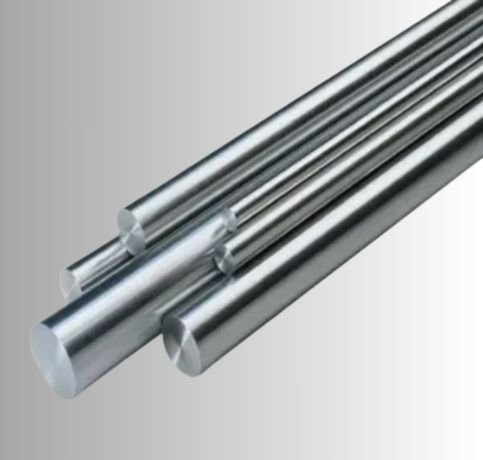

| Hastelloy Round Bar size | Diameter: 3-~800mm |

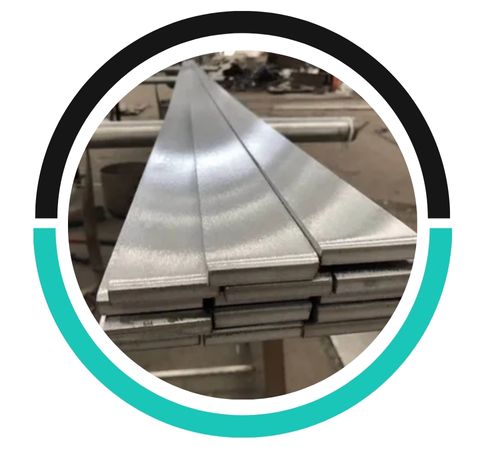

| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

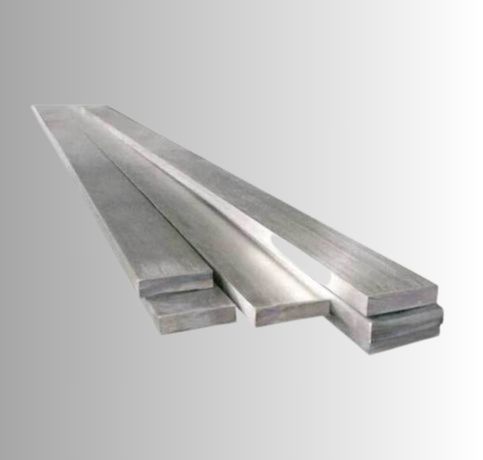

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

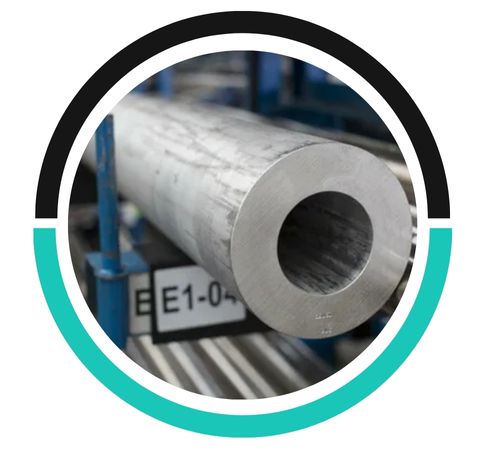

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

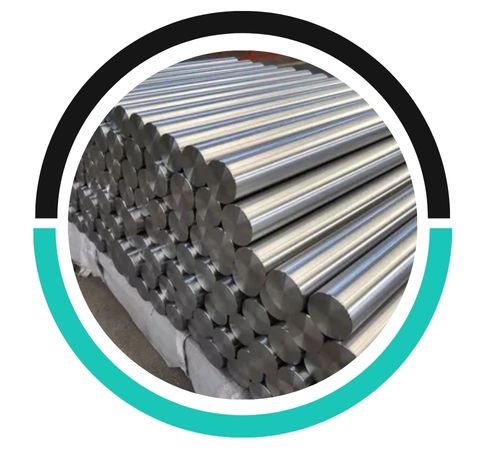

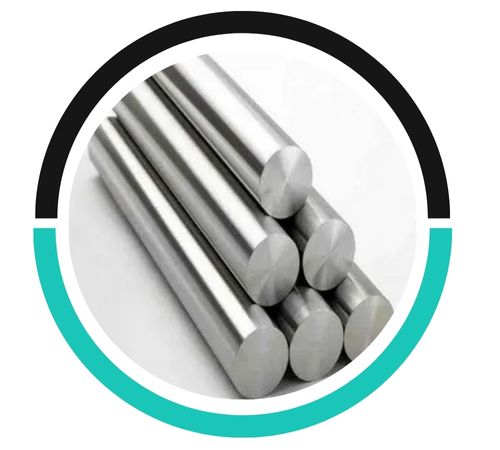

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |

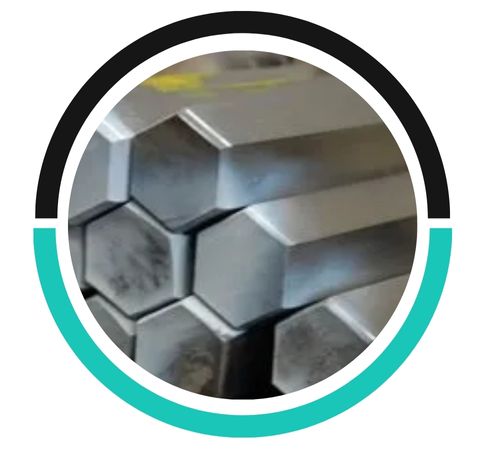

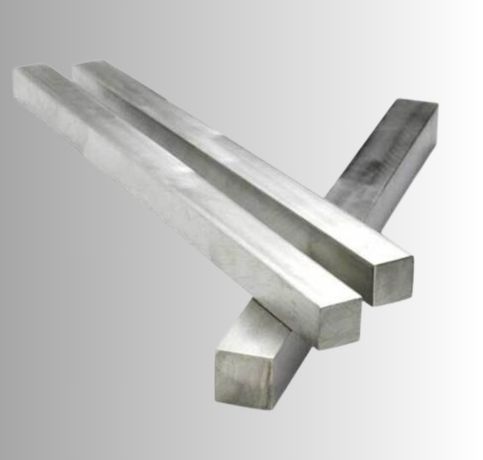

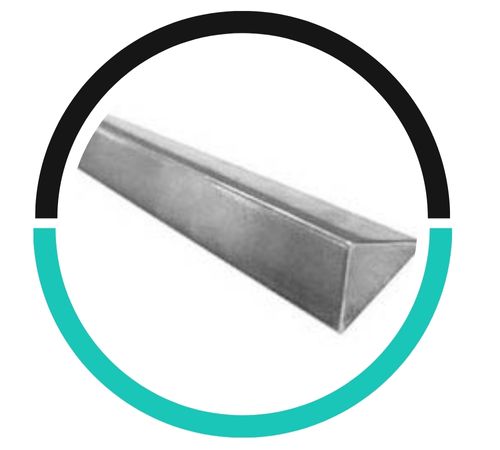

| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
Yes, Hastelloy Bars are highly corrosion-resistant, making them ideal for harsh environments, including chemical processing and marine applications. They resist pitting, crevice corrosion, and stress corrosion cracking effectively.
Yes, Hastelloy Rods can be customized in size and length to meet specific industry requirements. Their versatility ensures suitability for diverse applications.
Hastelloy bars perform exceptionally in high-temperature environments, offering thermal stability, oxidation resistance, and strength retention. They are ideal for demanding applications like chemical processing and aerospace.
These bars/rods find application in challenging chemical process industries, offshore and marine facilities, power plants, waste treatment and disposal, air and water pollution control, acid and base handling, flue gas treating, reactor parts, valves, pumps, heat exchangers, and wherever temperature extremes and corrosion are the issues. Selection of specific Hastelloy grade is based upon environment (reducing vs oxidizing, type of acid, etc.), cost, and mechanical properties required.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Da Nang, Vietnam
