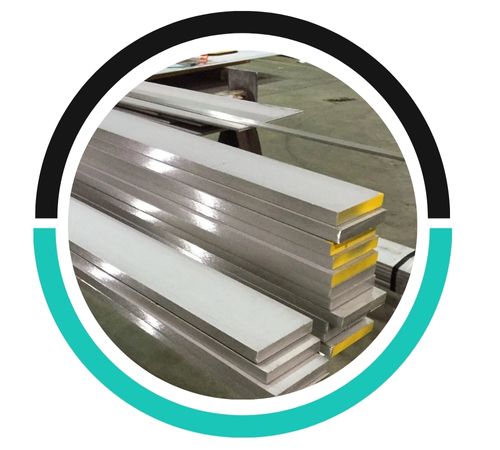

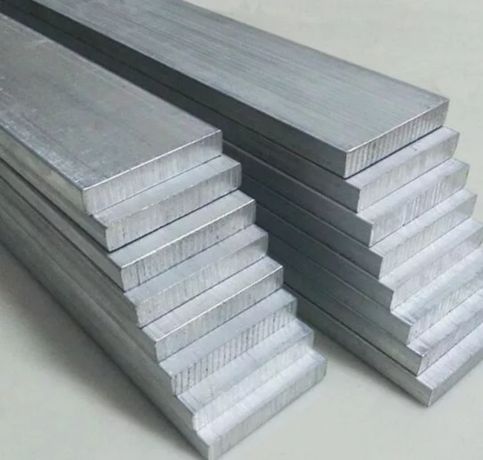

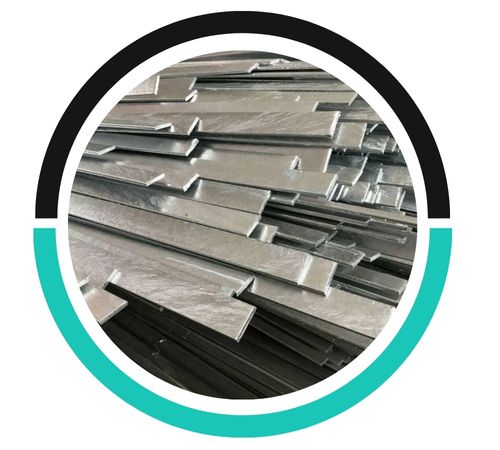

Based in Da Nang, Vietnam, Chung Metal manufactures and supplies high-quality Titanium Flat Bars that boast superior strength, corrosion resistance, and lightweight features. The manufacturing process for the bars is tightly controlled to ensure that dimensional accuracy and mechanical reliability are maintained. Titanium Flat Bars have many applications, including structural, mechanical, and performance-oriented uses in industries like aerospace, marine, medical, chemical processing, and defense, among others. Because of the excellent strength-to-weight ratio, these bars are ideal for use in advanced engineering projects. Chung Metal ensures each flat bar meets international quality standards by providing reliable material solutions for customers seeking high-performing titanium products that withstand extreme environmental and operational conditions.
Titanium Flat Bars are made from high-purity titanium, usually alloyed with aluminum and vanadium, depending on the grade. They feature tensile strengths from 550-950 MPa, with excellent resistance to corrosion in seawater, chlorine, and chemical environments. Mechanical properties include toughness, low density, and very good fatigue resistance. The low thermal expansion and good oxidation resistance at increased temperatures make this bar suitable for a variety of applications. This combination of strength with lightweight properties enables consistent performance in structural and mechanical applications.
| Standard | ASTM B348, ASME B348, ASTM B863, ASTM F67, ASTM F136 |
| Application | Industrial and Medical |
| Shape | Flat |
| size | Dia 5.0~350 X ≤ 6000 |
| Grade | Gr1, Gr2, Gr3, Gr4, Gr5, Gr7,Gr23,Ti15333 |
| Density | 4.53 g/cm3 |
| Techniques | Forged,Rolled, Extrusion |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Technique | TC4 Titanium Alloy Hot Rolled, Cold Rolled, Cold Drawn, Forged |
Hardness, Brinell | 120 | 120 | annealed |
Hardness, Knoop | 132 | 132 | Estimated from Brinell. |
Hardness, Rockwell B | 70 | 70 | annealed |
Hardness, Vickers | 122 | 122 | Estimated from Brinell |
Tensile Strength, Ultimate | 240 MPa | 34800 psi | – |
Tensile Strength, Yield | 170 – 310 MPa | 24700 – 45000 psi | – |
Elongation at Break | 24 % | 24 % | – |
Reduction of Area | 35 % | 35 % | – |
Modulus of Elasticity | 105 GPa | 15200 ksi | In Tension |
Compressive Modulus | 110 GPa | 16000 ksi | – |
Poisson’s Ratio | 0.37 | 0.37 | – |
Charpy Impact | 310 J | 229 ft-lb | V-notch |
Shear Modulus | 45 GPa | 6530 ksi | – |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Titanium Flat Bars are commonly used in the aerospace, medical, and chemical industries for components like frames, brackets, and heat exchangers due to their strength and corrosion resistance.
Yes, Titanium Flat Bars can be welded, but they require precise control over heat to avoid contamination and maintain the material’s strength and corrosion resistance.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chungmetal.com
Therefore, titanium flat bars are employed in wing components, brackets, supporting structures, and engine-related hardware in aerospace manufacturing due to their lightweight strength. In marine industries, they are ideal for offshore equipment, ship fittings, and seawater-resistant structures. The chemical processing industries use them in reactors, heat exchangers, and pipelines that may be exposed to corrosive chemicals. Other applications of Titanium Flat Bars include a vital role in medical devices, surgical instruments, and orthopedic implants. Defense and high-tech manufacturing industries also rely on them for precision parts that require excellent durability, corrosion resistance, and long-term reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
