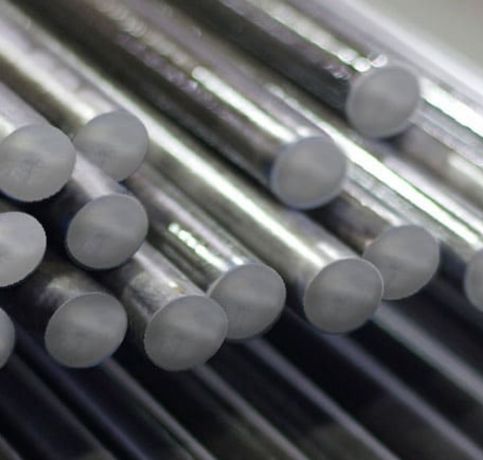

Chung Metal is a trusted metal manufacturer and supplier in Da Nang, Vietnam. It produces high-quality Alloy Steel Round Bars crafted for industrial performance and durability. Manufactured from advanced manufacturing processes, the bars boast superior strength, toughness, and resistance to wear and tear, thus becoming one of the most viable steels for demanding engineering applications. Chung Metal guarantees consistency in quality, dimensional accuracy, and reliable mechanical properties, which will benefit many industries, including the automotive, construction, machinery, and energy sectors. Striving for precision with customer satisfaction in mind, the company provides Alloy Steel Round Bars that meet the standards worldwide, suitable for projects that call for exceptional hardness, stability, and long-standing performance.
Alloy Steel Round Bars contain carbon, chromium, molybdenum, and nickel elements, which increase hardness, tensile strength, wear resistance, hardenability, and toughness. Thus, the bars are capable of supporting huge stresses and fatigue. The normal range of tensile is usually within the range of 600–850 MPa according to grade. Excellent machinability, impact resistance, and elevated temperature stability is ensured by this material. The balanced chemical composition with a long service life ensures consistent performance in mechanical and structural applications requiring superior strength and dimensional accuracy.
| Standard | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar Size | Diameter: 3-~800mm |
| Hex Bar Size | 2-100mm A/F |
| Square Bar Size | 4 to 100mm |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
| Diameter(Inch) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter) | Bar Size | Diameter (millimeter2) | Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Alloy Steel Round Bars are manufactured through processes like casting, hot rolling, cold drawing, and machining. These methods shape the steel into round bars, ensuring desired strength, finish, and dimensional accuracy.
Yes, Alloy Steel Round Bars are customizable. They can be manufactured in various sizes, lengths, alloy compositions, and finishes to meet specific mechanical, thermal, and corrosion resistance requirements for different applications.
Alloy Steel Round Bars, with their high mechanical strength and durability, find a wide range of applications in critical engineering. The common usages are found in the manufacture of shafts, axles, gears, crankshafts, fasteners, and heavy machinery parts. In the automotive sector, they find application in engine components and transmission systems. In construction and infrastructure, these materials are used for load-bearing parts and reinforcement. Excellent wear and fatigue resistance further makes them suitable for mining equipment, agricultural machinery, and power generation systems. The strength combined with versatility ensures their reliability under harsh environments and high-stress applications across industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
