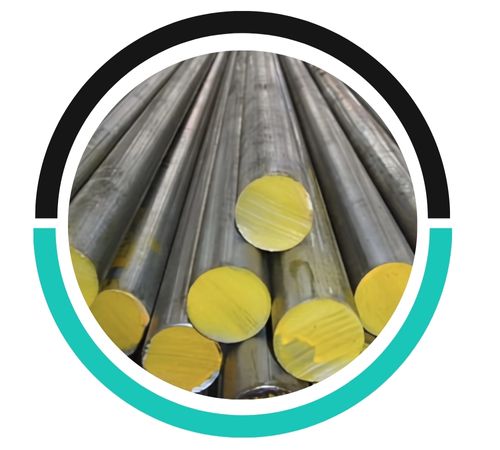

Chung Metals, based in Da Nang, Vietnam, is a leading name in metal manufacturing and supply. With decades of industry experience, the company delivers a wide range of premium-grade metal products renowned for durability and long-term performance. Among its flagship offerings are Tool and Die Steel H13 bars, valued for their exceptional resistance to wear, heat, and thermal fatigue. These bars are ideally suited for tooling, dies, and other demanding, high-stress applications. Committed to quality, Chung Metals continues to serve diverse industries including automotive, aerospace, and manufacturing—with materials engineered for reliability and excellence.
Tool and Die Steel H13 Bars contain 0.4% Carbon, 5.2% Chromium, 1.3% Molybdenum, 1.0% Vanadium, 0.3% Manganese, 0.3% Silicon, and a trace of Phosphorus and Sulfur. This alloy composition offers exceptional toughness, resistance to wear and high-temperature strength. Mechanical properties of the H13 steel bars are really excellent, and they have tensile strength up to 1,450 MPa, hardness range between 45-55 HRC, and thermal shock resistance. Their excellent machinability and good strength retention at elevated temperatures make them suitable for the most demanding applications like die-casting, forging, and extrusion, providing durability and reliability even in environments where other materials may compromise.
| ASTM A681 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| H13 | 0.32 | 0.45 | 0.2 | 0.6 | 0.03 | 0.03 | 0.8 | 1.25 | 4.75 | 5.5 | 0.8 | 1.2 | 1.1 | 1.75 |
| DIN ISO 4957 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| 1.2344 /X40CrMoV5-1 | 0.35 | 0.42 | 0.25 | 0.5 | 0.03 | 0.02 | 0.8 | 1.2 | 4.8 | 5.5 | 0.85 | 1.15 | 1.1 | 1.5 |
| JIS G4404 | C | Mn | P | S | Si | Cr | V | Mo | ||||||
| SKD61 | 0.35 | 0.42 | 0.25 | 0.5 | 0.03 | 0.02 | 0.8 | 1.2 | 4.8 | 5.5 | 0.8 | 1.15 | 1.0 | 1.5 |
| Properties | Metric | Imperial |
| Tensile strength, ultimate (@20°C/68°F, varies with heat treatment) | 1200 – 1590 MPa | 174000 – 231000 psi |
| Tensile strength, yield (@20°C/68°F, varies with heat treatment) | 1000 – 1380 MPa | 145000 – 200000 psi |
| Reduction of area (@20°C/68°F) | 50.00% | 50.00% |
| Modulus of elasticity (@20°C/68°F) | 215 GPa | 31200 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Country | USA | German | Japan |
| Standard | ASTM A681 | DIN EN ISO 4957 | JIS G4404 |
| Grades | H13 | 1.2344/X40CrMoV5-1 | SKD61 |
| Properties | Conditions | ||
|---|---|---|---|
| T (ºC) | Treatment | ||
| Thermal expansion | 10.4 x 10-6/ºC | 20-100 | – |
| Thermal conductivity | 28.6 W/mK | 215 | – |
When choosing Tool and Die Steel H13 bars, consider factors such as hardness, heat resistance, wear resistance, toughness, machinability, and the specific requirements of the application, including temperature and load conditions.
Tool and Die Steel H13 bars offer limited corrosion resistance due to their high alloy content, but they can still be susceptible to rusting in harsh environments. To improve corrosion resistance, they may require additional surface treatments like coating or regular maintenance to prevent degradation.
H13 tool and die steel bars are widely used in industries that require exceptional toughness, strength, and resistance to heat. They are commonly applied in the production of hot-working tools such as dies, molds, and extrusion tools for aluminum, zinc, and magnesium. Thanks to their outstanding thermal stability and resistance to cracking under thermal stress, H13 bars are ideal for forging dies, die-casting molds, and plastic injection molds. In addition, their wear resistance and abrasion tolerance make them suitable for punches, shear blades, and cutting tools. With excellent temperature stability, high hardness, and reliable retention, H13 steel bars are vital for precision applications where durability and accuracy are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
