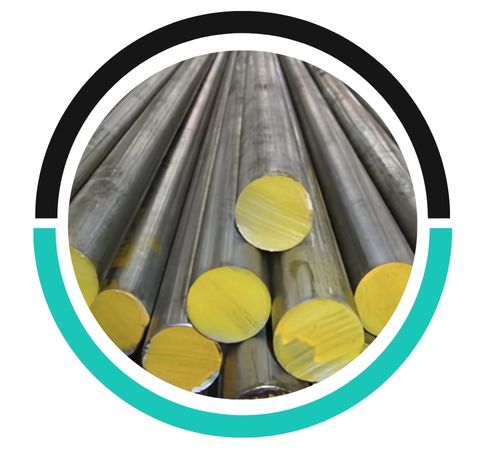

Chung Metal Manufacturer & Suppliers of Da Nang supplies top-grade P20 tool & die steel bars, commonly applied to injection molding tooling and die casting dies. P20 is a mid-alloy, pre-hardened tool steel that has good machinability, toughness, and stability. We supply P20 bars with accurate sizes, certified steel chemistry, and surface finish to meet tooling specifications. Our quality control guarantees minimal distortion and consistent mechanical properties. Tooling houses, mold producers, and plastic injection makers rely on our P20 bars for tough, dimensionally consistent tooling parts.
P20 tool steel generally contains ~0.28–0.40% carbon, ~1.50% chromium, ~0.40% molybdenum, with manganese, silicon, and vanadium. It is delivered pre-hardened condition (~30–32 HRC). Tensile strength is ~1,000–1,200 MPa, yield ~800 MPa, with elongation ~12–15%. Hardness, after final heat treatment, can be up to ~50–55 HRC. It has good toughness, good dimensional stability, and is well applicable for high-volume mold manufacturing. Machinability and polishability are good in its delivered condition.
| C % | Mn % | Si % | Cr % | Mo % |
| 0.40% | 1.00% | 0.40% | 1.20% | 0.35% |
| Properties | Metric |
| Hardness, Brinell (Typical) | 300 |
| Hardness, Rockwell C (Typical) | 30 |
| Tensile Strength, Ultimate | 965-1030 MPa |
| Tensile Strength, Yield | 827-862 MPa |
| Elongation At Break (In 50 Mm (2″)) | 20.00% |
| Compressive Strength | 862 MPa |
| Charpy Impact (V-Notch) | 27.1-33.9 J |
| Poisson’s Ratio | 0.27-0.30 |
| Elastic Modulus | 190-210 GPa |
| Country | USA | German | GB/T | JIS |
| Standard | ASTM A681 | DIN EN ISO 4957 | GB/T 1299 | |
| Grades | P20 | 1.2311 | 3Cr2Mo | PDS-3 |
| Properties | Conditions | ||
| T (°C) | Treatment | ||
| Thermal Expansion | 12.8 X 10-6/ºC | 20-425 | – |
When choosing P20 tool and die steel bars, consider machinability, toughness, hardness, heat treatment capabilities, corrosion resistance, application requirements, cost-effectiveness, and availability of suitable sizes for your specific needs.
Tool and die steel P20 bars are typically sized by their diameter and length, with common diameters ranging from 1 inch to 10 inches, and lengths ranging from 10 to 20 feet.
P20 bars are widely utilized in injection mold bases, core and cavity plates, die casting dies, and plastic tooling. They are appropriate for high-volume plastic components, automotive body panels, package molds, and consumer product tooling. Their stability ensures dimensional accuracy during thermal cycling. P20 is also employed in stamping die bases, plastic extrusion tooling, and prototype molds. Its polishability facilitates molded finish specifications. Since it’s pre-hardened, P20 saves lead time for mold manufacturing and assists tooling shops with stability and productivity management.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
