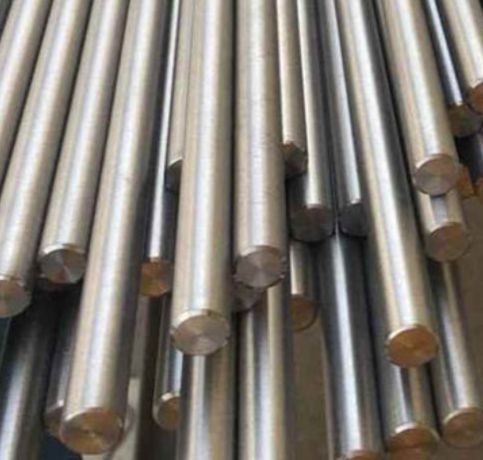

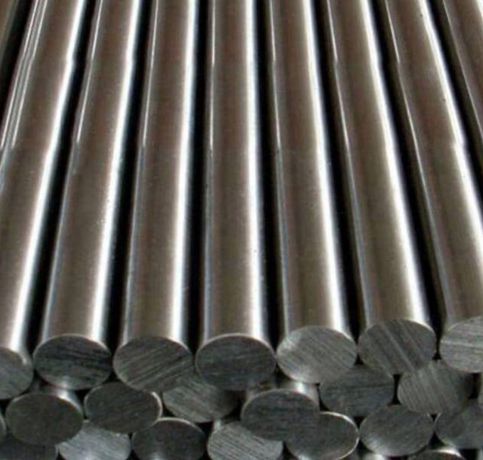

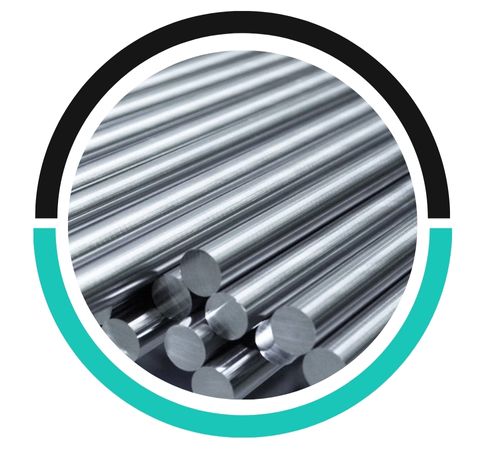

Chung Metal offers high purity Tantalum R05400 Bars and Rods, engineered to provide excellent formability and corrosion resistance against chemically aggressive environments. R05400 has specifications meeting or exceeding ASTM B365 standards and is well suited for use in ultra-pure chemicals, acid, and high-temperature applications. It’s widely applied in the electronics, medical, and chemical industries. Chung Metal’s manufacturing process delivers each R05400 bar with precision finish, uniform grain structure, and full traceability.
Tantalum R05400 has ≥99.95% pure tantalum with controlled interstitials for high ductility. It has tensile strength of around 200–450 MPa, yield strength of near 150 MPa, and elongation of more than 30%. It is resistant to acids and retains mechanical strength at high temperatures. Its ultra-high purity improves its performance in electronics and lab-grade applications.
| Specification | ASTM B365, ASME SB365 |

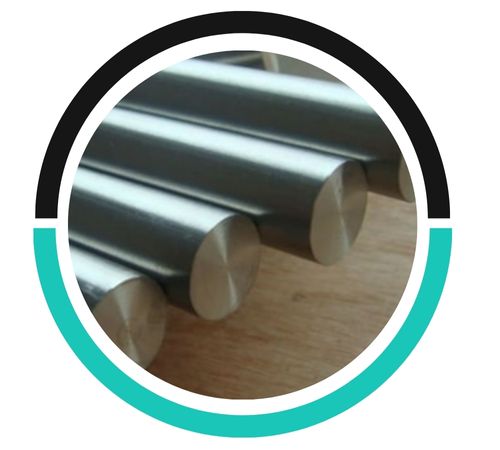

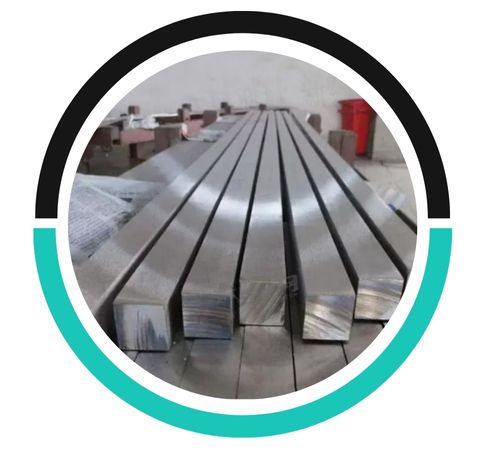

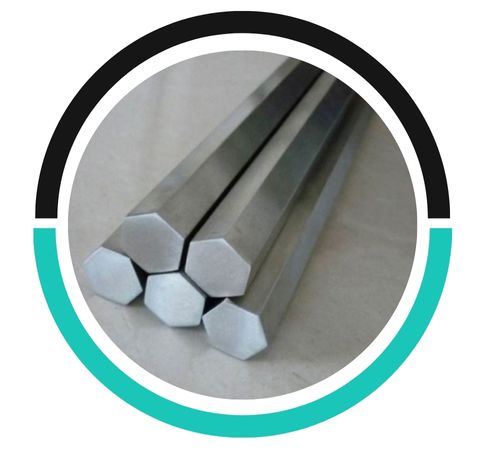

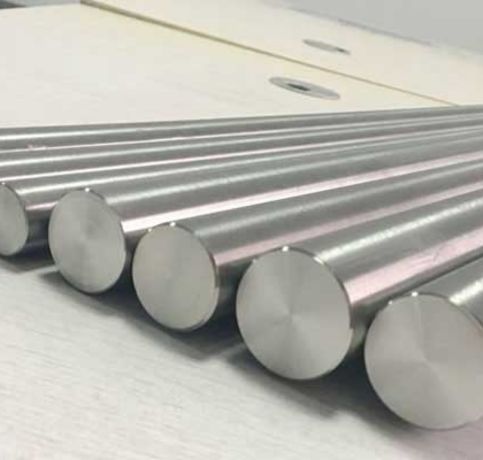

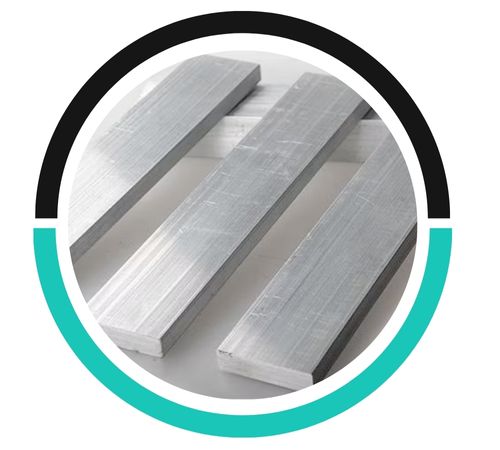

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05400 | 0.010 | 0.03 | 0.010 | 0.0015 | 0.100 | 0.010 | 0.010 | 0.050 | 0.020 | 0.005 | 0.010 | Remainder |
| Tantalum Alloy Rods & Bars Mechanical Property | ||||
| Grade | Tensile strength “>， psi (MPa)， ≥ | Yield strength “>， psi (MPa)， ≥ | Elongation in 1 inch gage length， ％， ≥ | |
| RO5400 | 25000 (172) | 15000 (103) | 25 | |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Store Tantalum R05400 bars and rods in a clean, dry environment away from moisture and corrosive substances. Use protective covers or packaging to prevent contamination, scratches, or physical damage during storage.
Tantalum R05400 can withstand extremely high temperatures, up to approximately 3,000°C (5,432°F) in a vacuum or inert atmosphere. Its excellent heat resistance makes it ideal for high-temperature applications.
R05400 bars and rods are applied in the production of semiconductors, medical devices, chemical reactor linings, and laboratory equipment of high purity. They are ideal for furnace parts, heat exchanger tubing, and corrosion-resistant fasteners. Their purity finds their application in electronics, surgical instruments, and drug manufacturing systems. Chung Metal provides these rods in sizes customized to specifications and surface finishes optimized for environments requiring extreme chemical inertness and biocompatibility.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
