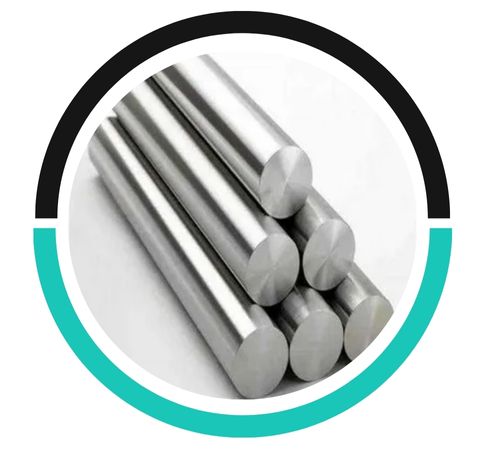

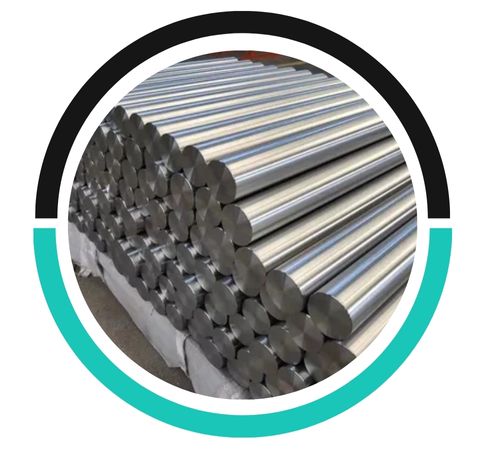

Chung Metal supplies an extensive selection of Nitronic Bars and Rods that are produced in Da Nang, Vietnam. Nitronic is a trademarked name for a series of nitrogen-strengthened austenitic stainless steels that provide a superior balance of strength, corrosion resistance, and toughness. These steels have better mechanical and chemical properties than common grades such as 304 and 316. Chung Metal offers Nitronic bars and rods in multiple grades and sizes, all manufactured to precision standards to provide perfect surface finish, accuracy of dimensions, and high wear and corrosion resistance.
Nitronic alloys are 18–23% chromium, 8–14% nickel-containing, high-nitrogen stainless steels with molybdenum and manganese additions. Nitronic grades give 304 and 316 twice the yield strength with tensile strength to 1000 MPa. They are non-magnetic and possess good resistance to pitting, stress corrosion, and galling. The addition of nitrogen strengthens without losing ductility, hence suitable for heavy-duty industrial applications.
| Standards : | UNS S21906 | AMS 5656 | MIL-T-9821 | ASTM A276 | ASME SA276 UNS S21800 | Alloy 218 | ASME SA 193 | AMS 5848 | ASTM A 193 EN 1.3964 | ISO 15156-3 | NACE MR0175 | UNS S20910 | AMS 5764 | ASTM A193 | Werkstoff 1.3964 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

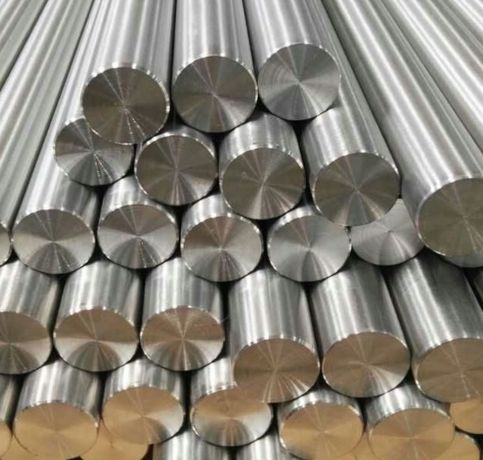

| Round bar size : | Diameter: 3-~800mm |

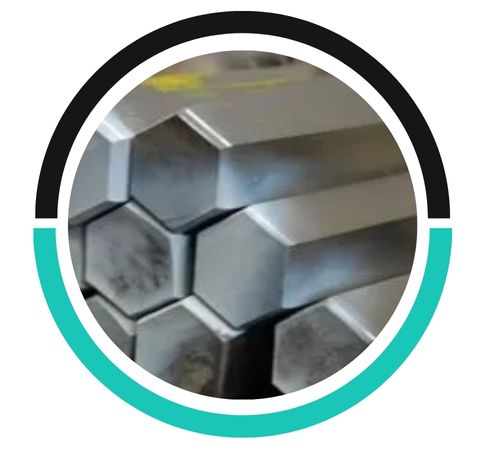

| Hex Bar size : | 2-100mm A/F |

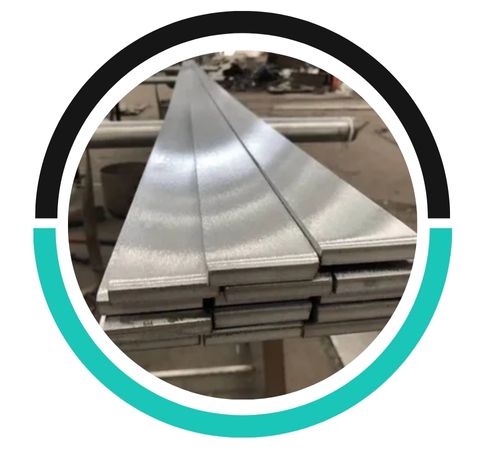

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

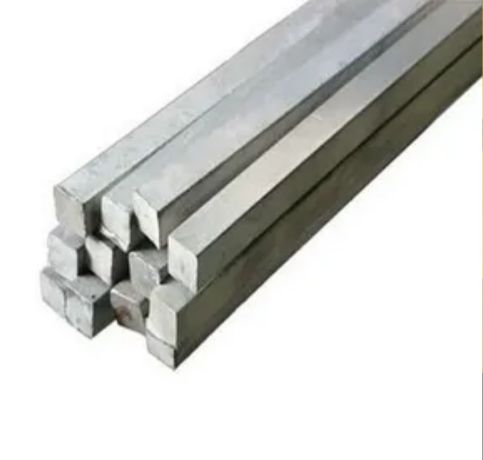

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

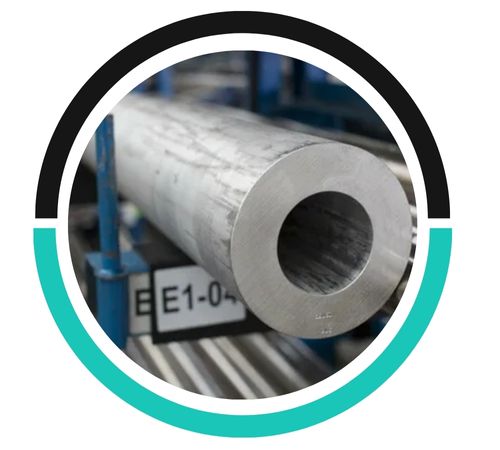

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cr | Ni |
| Nitronic 50 | 0.06 max | 0.10 max | 0.1 max | 23.50 | 14.00 – 17.00 | 13.50 max |
| Nitronic 60 | 0.10 max | 9.00 max | 4.5 max | – | 18.00 | 9.00 max |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| Nitronic 50 | 95 | 50 | 35 % | 241 |
| Nitronic 60 | 105 | 55 | 35 % | – |
| STANDARD | UNS | EN | ISO | NACE | AMS | ASTM | Werkstoff | other |
| Nitronic 40 | S21906 | – | – | – | 5656 | A276 | – | MIL-T-9821 |
| Nitronic 50 | S20910 | 1.3964 | 15156-3 | MR0175 | 5656 | A193 | 1.3964 | MIL-T-9821 |
| Nitronic 60 | S21800 | – | – | – | 5848 | A193 | 1.3964 | Alloy 218 |
Yes, Nitronic bars, such as Nitronic 50 and Nitronic 60, can be welded using standard welding techniques, including TIG, MIG, and shielded metal arc welding (SMAW), with appropriate filler material.
Suitable welding processes for Nitronic bars include TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and stick welding, with proper filler materials to ensure strong, corrosion-resistant joints.
Nitronic rods are available in a range of sizes, typically from 1/8" to 12" in diameter. Common finishes include hot-rolled, cold-rolled, polished, and machined, depending on the application.
Nitronic bars and rods are employed in offshore hardware, pump and valve parts, food processing, oil & gas, and chemical plants. They are especially appreciated for applications demanding high strength and corrosion resistance without the necessity of costly nickel alloys. Nitronic is employed in aerospace parts, shafts, pins, and non-magnetic uses. The alloy exhibits good performance under mechanical stress and corrosive conditions, thus being suitable for submerged or offshore structures.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Da Nang, Vietnam
