Chung Metal exports Aluminium 5082 bars and rods from its plant in Da Nang, providing excellent corrosion resistance, weldability, and strength. Being a member of the 5xxx series, 5082 is magnesium-alloyed primarily, providing it with improved mechanical strength with good formability. Although not as widely used as 5083 or 5086, it is especially useful in automotive, marine, and structural applications where strength and corrosion resistance are desired. Our 5082 bar and rod products are made from accurate extrusion and finishing, which makes them good for uses that demand uniform mechanical performance as well as weather resistance.
Aluminium 5082 has ~4.0–4.9% magnesium, 0.2–0.6% manganese, and minor chromium impurities. It is not heat-treatable but hardens through cold working. Tensile strength: ~290–330 MPa, yield strength: ~210–260 MPa, elongation: ~12–20%. Brinell hardness ~75–85 HB. Weldability is good and retains mechanical properties when welded. Corrosion resistance against marine and chemical environments. Moderate fatigue strength, therefore, load-bearing and long exposure to weathering. Strength and corrosion resistance are balanced, perfect for structural parts and mobile equipment.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

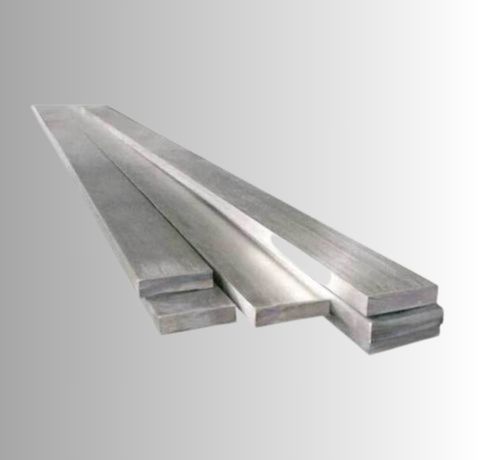

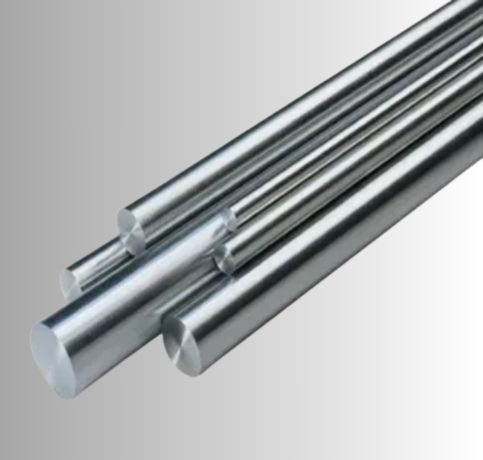

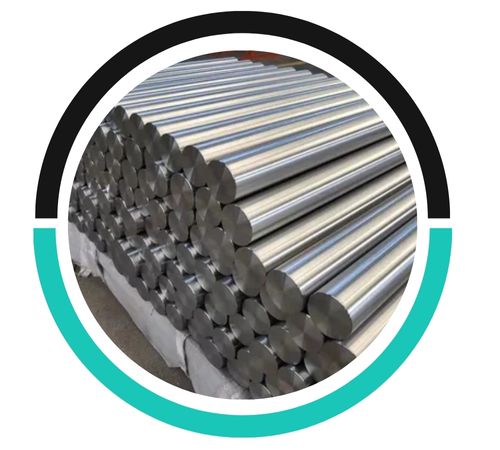

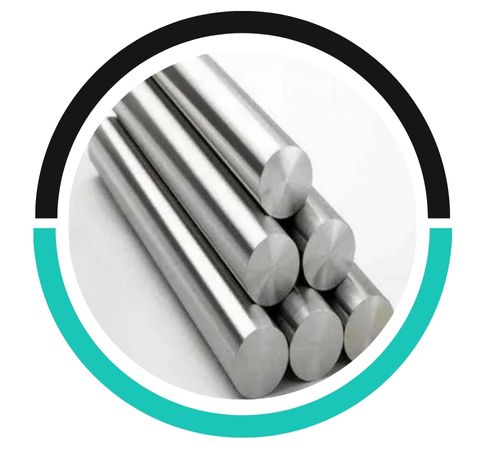

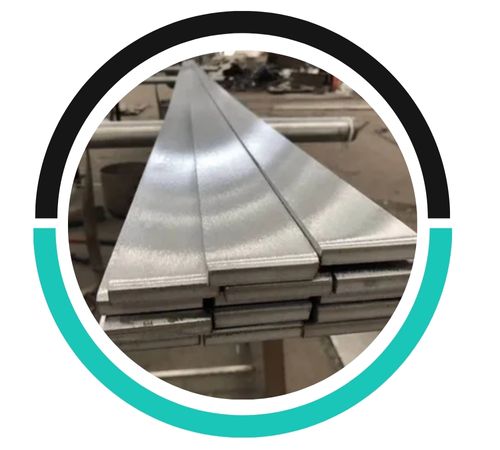

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| GRADE | Al | Cr | Cu | Fe | Mg | Mn | Si | Ti | Zn | Residuals |
| 5082 | 95.2 to 98.3% | 0.25% max | 0.1% max | 0.5% max | 0.6 to 1.2% | 0.4% to 1.0% | 0.7 to 1.3% | 0.1% max | 0.2% max | 0.15% max |
| Density | Melting Point | Modulus of Elasticity | Electrical Resistivity | Thermal Conductivity | Thermal Expansion | Specific Heat |
| Value | 2700 kg/m3 | 555°C | 70 GPa | 0.038×10-6 Ω.m | 180 W/m.K | 24×10-6 /K |
| European Standard | OLD | WNr | UNS | ISO | USA (AA) | GERMANY (DIN) |
| AW-AlMg4,5 | AG4,5 | 3.3345 | A95082 | AlMg4,5 | 5082 | AlMg4,5 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Maintain Aluminum 5082 bars by regularly cleaning with mild soap and water to prevent dirt buildup. Avoid harsh chemicals, use non-abrasive tools, and protect against corrosion by storing in dry conditions.
Yes, Aluminium 5082 bars are recyclable. Like most aluminum alloys, they can be melted down and reused without significant loss of properties, making them an environmentally sustainable material.
Yes, Aluminium 5082 rods can be customized in size and length. Manufacturers often offer custom dimensions to meet specific requirements for industrial, construction, or engineering applications.
Aluminium 5082 rods and bars are applied in pressure vessels, vehicle bodies, marine fittings, and railcar parts. In ship construction, it is utilized in deck equipment and interiors. It is also used in the production of automobile and trailer manufacturing, such as floors, frames, and body panels. Utilized in fuel systems, storage tanks, and piping that is exposed to corrosive materials. Its formability and strength balance render it a good option for light structural parts in outdoor or severe environments. It can be welded and utilized where long-term maintenance-free operation is desired.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
