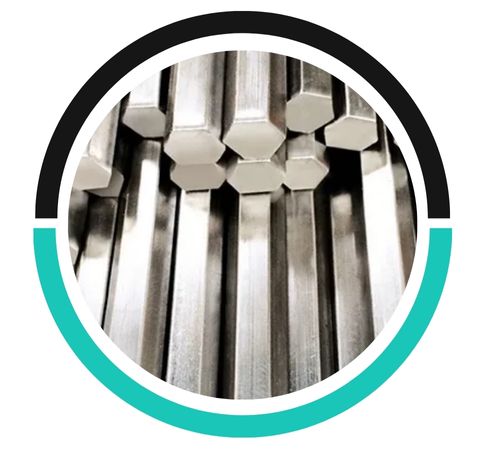

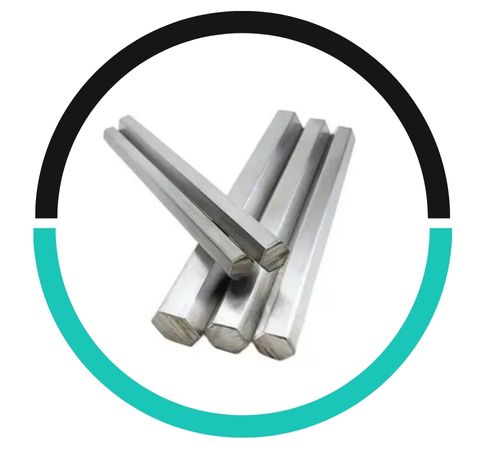

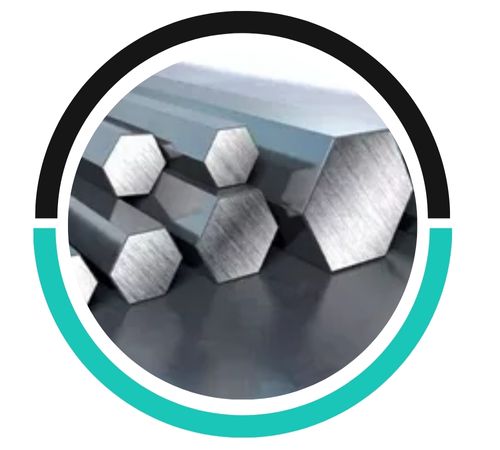

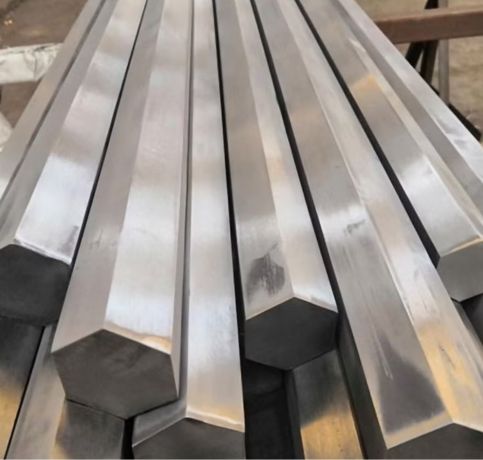

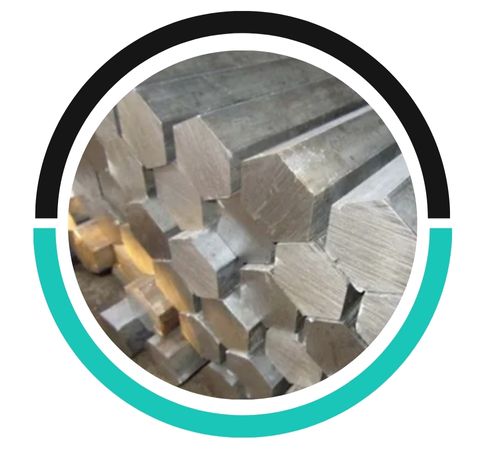

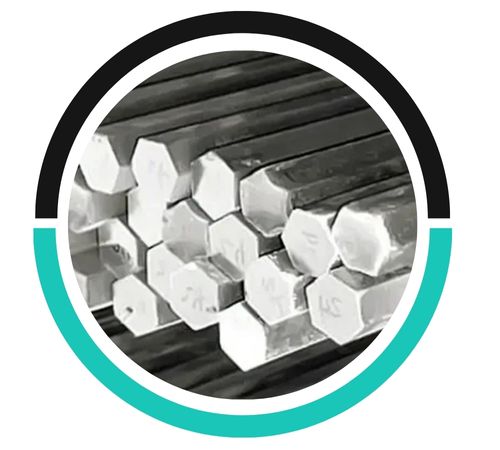

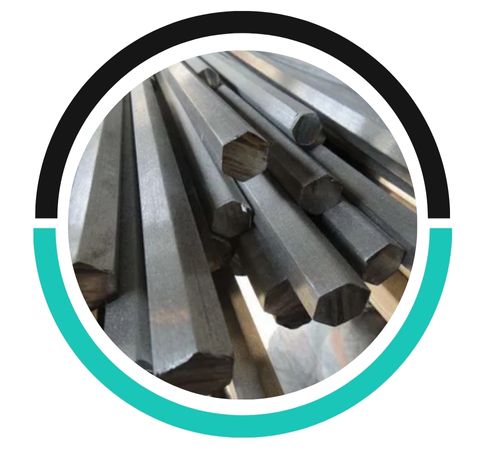

Chung Metal offers Stainless Steel 440C Hex Bars, a martensitic stainless steel with high carbon content intended to have maximum hardness and wear life. Manufactured in Da Nang, Vietnam, 440C is heat-treatable to very high hardness and is applied to precision tooling, bearings, and valve components. Chung Metal provides dimensional tolerances, clean surface finish, and uniform metallurgy for severe tool and die applications.
440C has 16–18% chromium, up to 1.2% carbon, and negligible nickel. It can be hardened to Rockwell hardness of 58–60 HRC. Tensile strength may be more than 750 MPa in hardened state. It possesses moderate corrosion resistance but excellent wear and abrasion resistance. It is ferromagnetic and needs tempering after heat treatment.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 440C | 1.20-0.95 | 18.00-16.00 | 1.00 | 1.00 | 0.04 | 0.03-0.15 | 1.00 |
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 440C | 1.20-0.95 | 18.00-16.00 | 1.00 | 1.00 | 0.04 | 0.03-0.15 | 1.00 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Heat treatment of SS 440C involves hardening by quenching and tempering, significantly increasing hardness and wear resistance. Proper heat treatment also enhances corrosion resistance, making the material suitable for demanding applications.
SS 440C Hex Bar is commonly used in bearings, shafts, valves, and tools. Its high hardness, wear resistance, and moderate corrosion resistance make it preferred over other stainless steels for demanding, high-strength applications.
440C hex bars are applied in knife blades, ball bearings, surgical instruments, valves, molds, and mechanical parts demanding utmost hardness. Suitable for applications which demand great resistance to wear with low exposure to corrosive environments. It’s applied in aerospace, defense, medical devices, and precision manufacturing industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
