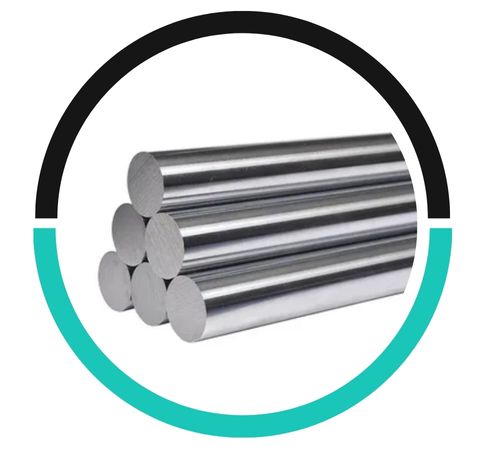

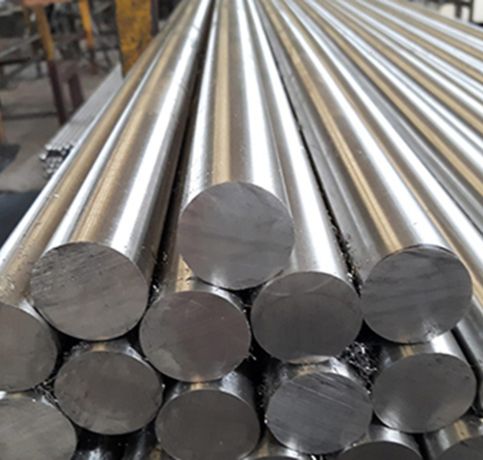

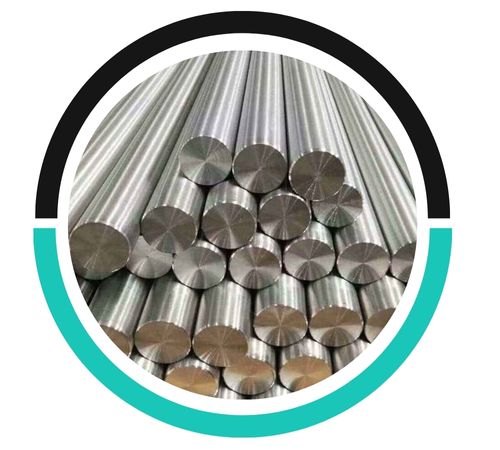

Chung Metal provides multifaceted Stainless Steel 304 Round Bars and Rods, the most versatile of the austenitic stainless steels. SS 304 has superior corrosion resistance, strength, and formability and is ideal for a wide variety of industrial and commercial applications. The round bar shape is most suitable for rotating components, shafts, fasteners, and structural elements. Our Chung Metal’s 304 round bars are produced to close dimensional tolerances with smooth surface finishes, conforming to ASTM standards for mechanical and chemical performance in various industries.
SS 304 has 18–20% chromium and 8–10.5% nickel. Its tensile strength is 500–750 MPa, yield strength is 200–300 MPa, and elongation is ~40%. It is non-magnetic in the annealed state, and it provides superior corrosion resistance as well as mechanical stability. Round form is beneficial for high-speed machining and fabrication.
| Specifications | ASTM A 276 / SA 276 |
|---|---|
| Dimensions | ASTM, ASME |
| Range | 3.17 MM TO 350 MM DIA |
| Diameter | 25mm to 152m |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wiremesh, Billet, Ingot, Forging Etc., |
| Condition | Cold Drawn & Polished Cold Drawn, Centreless Ground & Polished |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 304 | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0-20.0 | – | 8.0-10.5 | 0.10 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
|
Type |
SIZES (Inches) |
ISO Tolerance |
SIZES (mm) |
|---|---|---|---|
|
Peeled and Polished |
1.50″ to 6.00″ |
h11-DIN 1013 |
40.00 to 150.00 |
|
Cold Drawn and Ground |
5/6″ to 2.50″ |
h9-h8-h11-h10 |
10.00 to 75.00 |
|
Cold Drawn and Polish |
1/8″ to 3.00″ |
h9-h8-h11-h10 |
3.00 to 75.00 |
|
Peeled and Ground |
3/4″ to 2.00″ |
h10-h9-h11 |
20.00 to 50.00 |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| SS 304 | S30400 | 1.4301 | Z7CN18‐09 | X5CrNi18-10 | SUS 304 | 304S31 | 08Х18Н10 |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |

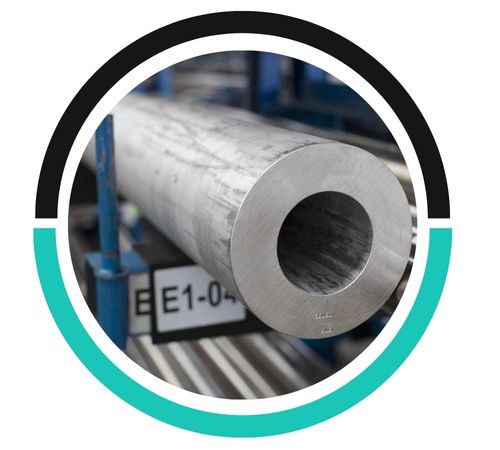

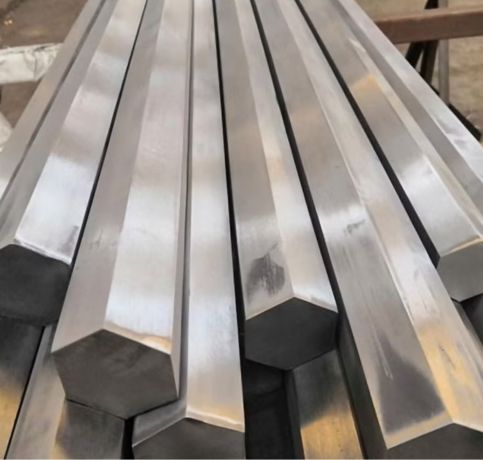

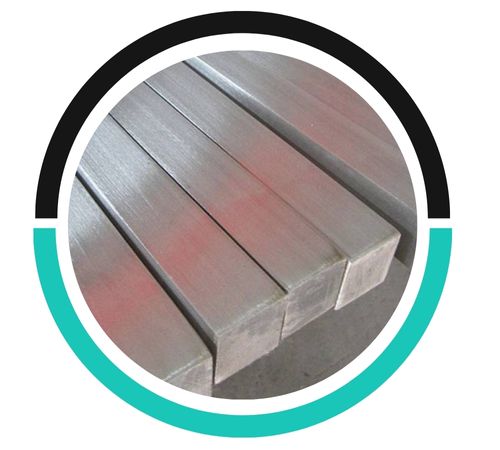

We supply a wide range of 304 Stainless Steel Bars and Rods, including round bars, square bars, hexagonal bars, flat bars, hollow bars, and rectangular bars. These products are available in various sizes and shapes to meet the diverse needs of different industries.
Chung Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 304 Bars and Rods, catering to industrial, commercial, and personal needs across the Vietnam and worldwide.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@chungmetal.com
304 rods/round bars are applied in piping, tanks, kitchen equipment, automotive components, construction supports, and furniture frames. Their food processing, marine atmospheres, pharmaceuticals, and brewing applications are made possible by corrosion resistance. The round shape is most suitable for bolts, hangers, spindles, and shafts. SS 304 is further extensively applied in heat exchangers, general engineering, and chemical plants because of its cost-effectiveness and strength. Chung Metal provides these in mill or polished finishes in custom-cut lengths.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Da Nang, Vietnam
