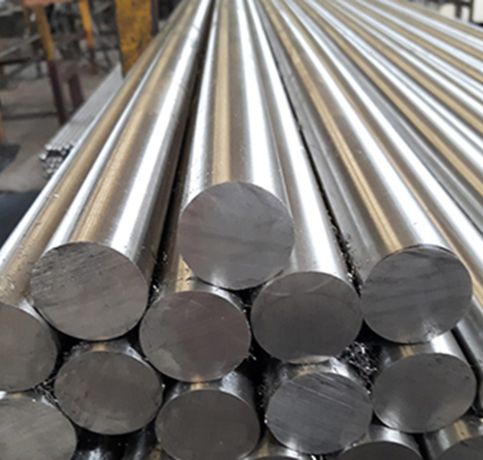

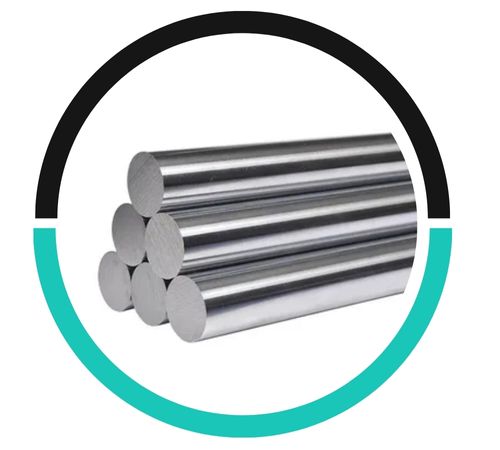

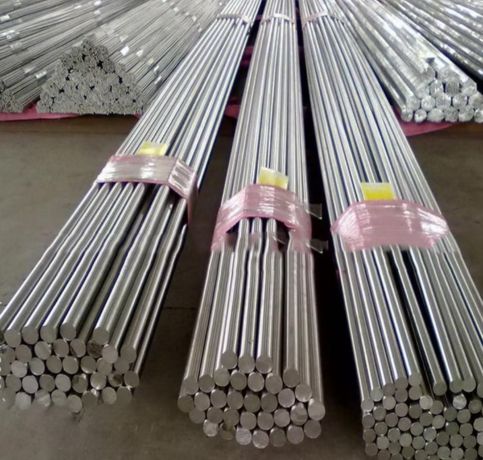

Chung Metal provides 317 stainless steel round bars and rods for service in severe chemical, marine, and high-corrosion conditions. 317 contains a higher molybdenum content than 316 and provides enhanced pitting resistance. Our rods are dimensionally accurate, metallurgically verified, and designed for fabrication and final parts machining. Applications requiring additional corrosion performance in chloride or acid service rely on 317 round stock supplied by Chung Metal.
SS 317 has ~18–20% chromium, ~11–14% nickel, ~3–4% molybdenum, carbon ~0.08%. Tensile strength ~515–700 MPa, yield ~205–300 MPa, elongation ~40%. Moderate hardness. The additional molybdenum enhances pitting and crevice corrosion resistance. Ductility and weldability are not lost. Round bars have the same mechanical and corrosion properties as plate or any other shape of 317.
Standard : 317 / 1.4449
Range : 3.17mm to 350mm dia
Designation : ASTM A276, ASME SA276
Finish : Bright, Black, Polish
Thickness: 4.0mm – 100mm

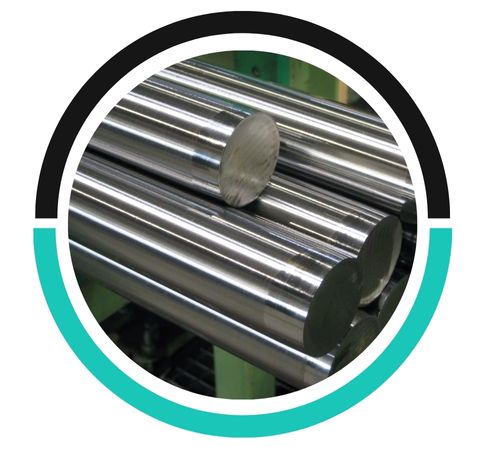

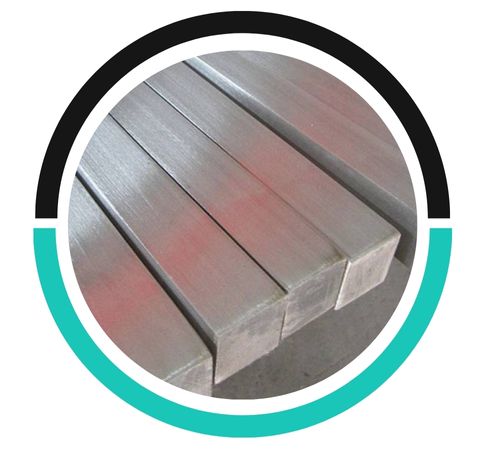

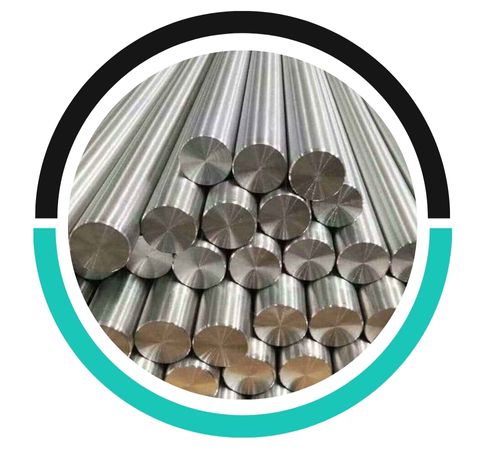

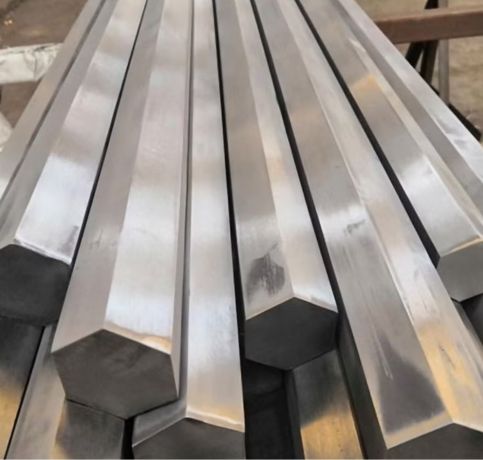

Type: Bar, Bright Bar, Black Bars, Hex Bar, Square Bar, Rods, Polish Bar, Forged Bar, Round Bar
Length : Random, Fix & Cut Length
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| 317 | 0.08 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 14 | – |
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35 % |

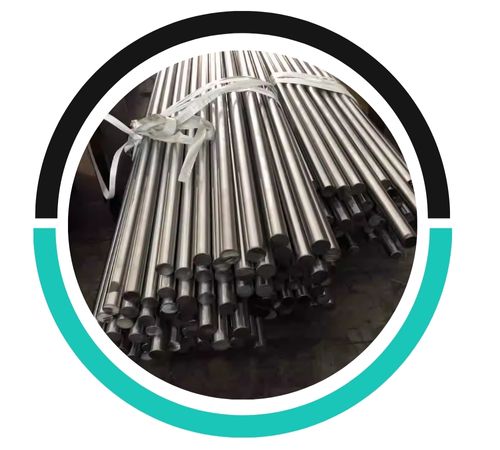

| Type | Cold Drawn and Polish | Cold Drawn and Ground | Peeled and Polished | Peeled and Ground |
|---|---|---|---|---|
| Size (mm) | 3.00 – 75.00 | 10.00 – 75.00 | 40.00 – 150.00 | 20.00 – 50.00 |
| Size (inch) | 1/8 – 3.00 | 5/6 – 2.50 | 1.50 – 6.00 | 3/4 – 2.00 |
| ISO Tolerance | h8-h9-h10-h11 | h8-h9-h10-h11 | h11, h11-DIN 1013 | h9-h10-h11 |
| Standard | SS 317 |
| UNS | S31700 |
| WERKSTOFF NR. / DIN | 1.4449 |
Yes, Stainless Steel 317 Round Bars and Rods can be recycled effectively. Stainless steel is highly recyclable, maintaining its properties after recycling, making it an environmentally sustainable material for repeated use.
Chung Metals is a leading manufacturer and supplier of premium-quality Stainless Steel 317 Bars and Rods, catering to industrial, commercial, and personal needs across the Vietnam and worldwide.
Applied in chemical process equipment, piping, shafts, fasteners, and structural supports in acid/chloride environments. Also used in marine, desalination, and offshore facilities. Round rods commonly machined into shafts, pins, axles, and connectors where there is corrosion concern. Suitable for components that are subjected to both mechanical load and corrosive media.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Chung Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Da Nang, Vietnam
