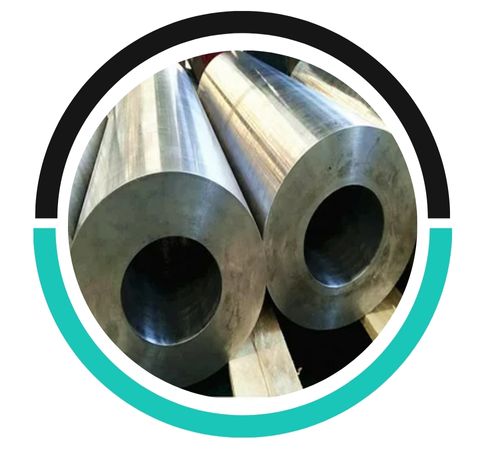

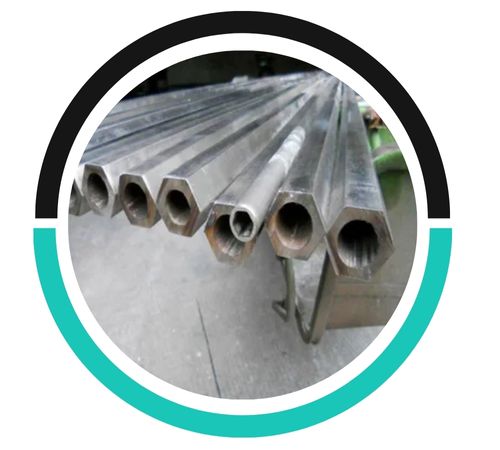

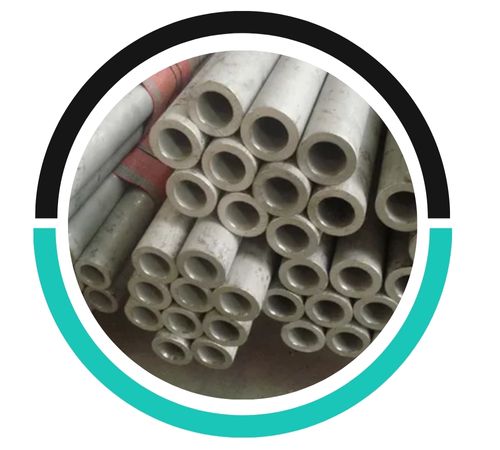

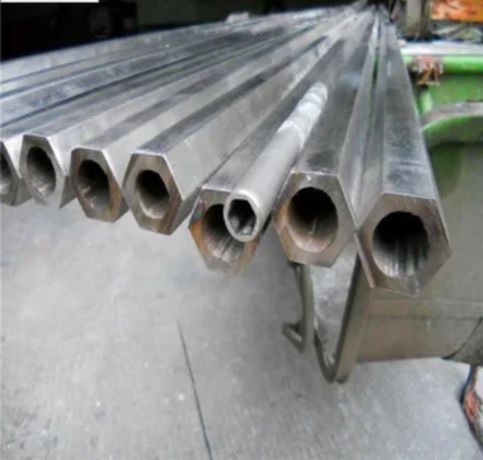

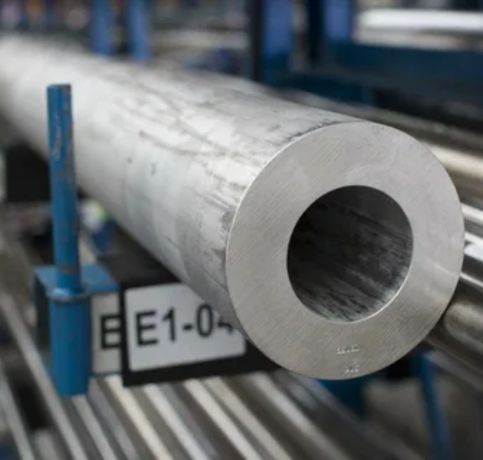

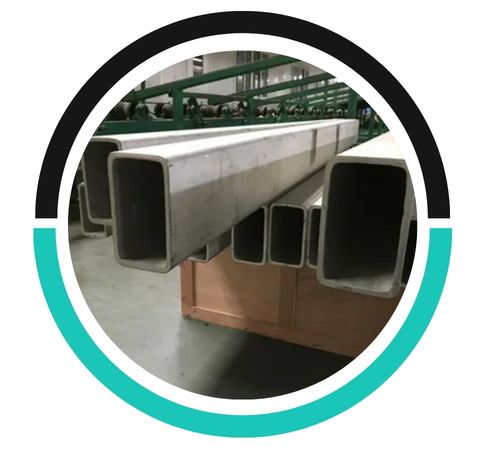

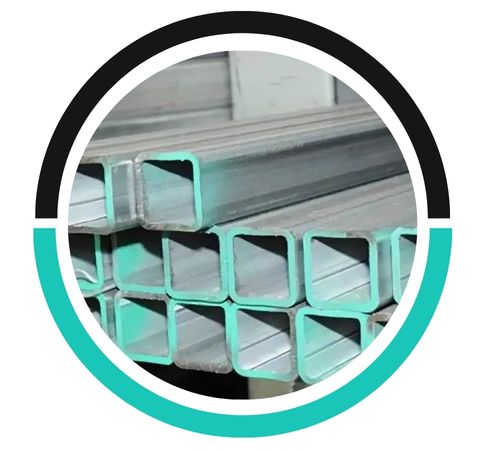

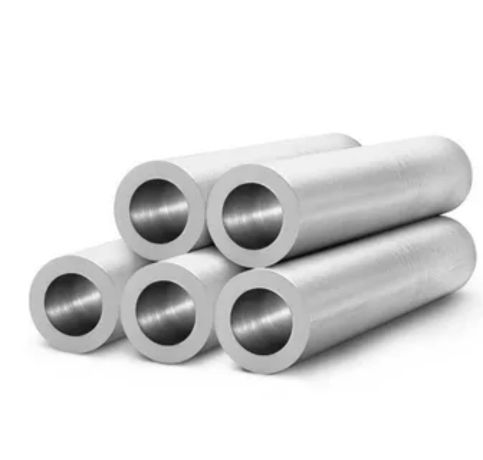

Chung Metal Manufacturer & Suppliers in Da Nang provides Stainless Steel 904L Hollow Bars for use in areas where resistance to corrosion particularly to reducing acids as well as chloride environments is paramount. Austenitic stainless steel with high alloy content, rich in nickel, chromium, molybdenum, and copper, is Grade 904L. Our hollow bars deliver strength, toughness, and the advantages of weight saving and material economy in tube‑like shapes. Manufactured under strict quality control and certified to international standards, 904L hollow bars serve in chemical processing, marine, petrochemical, and environmental applications where severe corrosion issues prevail.
SS 904L has about 19‑23% chromium, 23‑28% nickel, ~4‑5% molybdenum, minor copper additions, and low carbon content maintained (≤ ~0.02‑0.03%) to reduce sensitization. It has superior pitting, crevice corrosion, and stress corrosion resistance in chloride and sulfuric acid surroundings. The mechanical properties are generally tensile strength ~500‑700 MPa, yield strength about ~200‑350 MPa, elongation ~35‑45%, and hardness moderate. The weight is minimized with the hollow (tubular) shape while structural stability is retained. Weldability is excellent with proper procedures; corrosion performance is outstanding.
| Standard | ASTM B649, ASME SB649 |
| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |
| Flat Bar Size | 2mm ~ 100mm |
| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Cu | C | Mn | Si | P | S |
| 904L | 23 – 28 | 4 – 5 | 19 – 23 | 1 – 2 | 0.02 max | 2.0 max | 1.0 max | 0.045 max | 0.035 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.05 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | JIS | BS | KS | EN |
| 904L | 1.4539 | N08904 | Z2NCUD31-20AZ | SUS 890L | 904S13 | STS 317J5L | X1NiCrMoCu25-20-5 |
SS 904L stainless steel consists of approximately 24-26% chromium, 19-23% nickel, 4-5% molybdenum, 1-2% copper, and small amounts of manganese, silicon, and carbon. The copper enhances corrosion resistance, particularly in acidic environments, while maintaining high strength.
The typical diameter range for SS 904L hollow bars varies from 10 mm to 300 mm, although custom sizes can be manufactured. These bars are available in various wall thicknesses, depending on specific application requirements and industry standards.
904L Hollow Bars are employed in chemical reaction equipment, sulfuric acid handling plant, flue gas desulfurization, and in environments exposed to aggressive reducing acids and chloride attack. Marine structures, seawater systems, parts of desalination plants, and offshore oil & gas platforms utilize 904L hollow sections. Also applied in heat exchangers, structural supports in corrosive environments, and chemical processing pipe support. Their hollow shape is designed to provide weight savings and ease fabrication of pipe-like parts. Utilized in application to baffles, lining, support rings, and fabrications where corrosion resistance and strength are both critical.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
