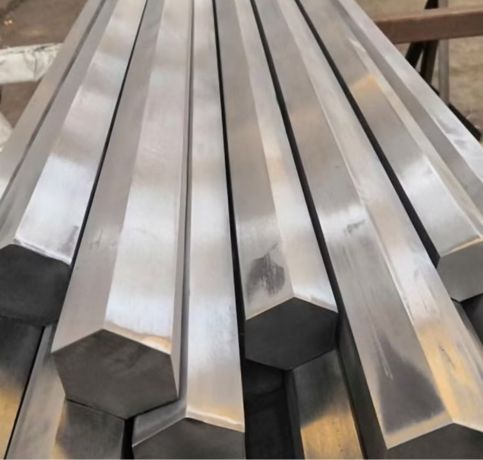

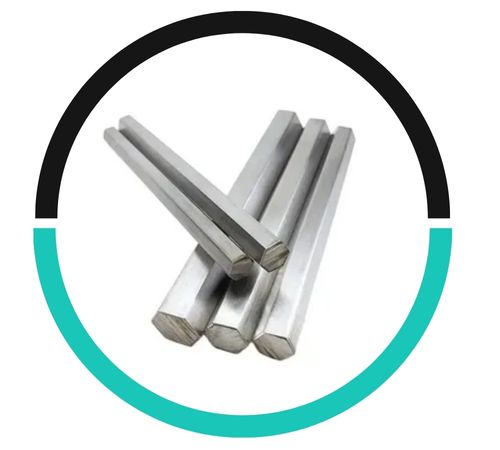

Chung Metal produces Stainless Steel 202 Hex Bars and Rods in Da Nang, Vietnam, that feature excellent machinability and corrosion resistance. Hexagonal bars from Chung Metal have superior strength and are simple to work with, best suited for fasteners and precision-engineered components. Chung Metal uses state-of-the-art production techniques to provide a smooth finish, accurate dimensions, and mechanical homogeneity. 202 hex bars have great durability in normal environments, where they combine strength, formability, and economy.
202 stainless steel has 17–19% chromium, 4–6% nickel, 7–10% manganese, and ≤0.15% carbon. It has tensile strength 650 MPa, yield 350 MPa, and elongation 40%. The alloy has superior toughness, ductility, and formability for structural and machining uses.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 202 | ≤ 0.15 | 17- 19 | 7.50-10 | 4-6 | ≤ 0.060 | ≤ 0.030 | ≤ 1 |
| Element | Tensile Strength | Yield Strength | Elongation |
| SS 202 | 515 MPa | 275 MPa | 40% |
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Stainless Steel 202 Hex Bar and Rod is commonly used in manufacturing hardware, fasteners, and structural components. It finds applications in industries such as automotive, construction, food processing, and chemical equipment. Its resistance to corrosion and durability makes it ideal for components exposed to harsh environments, including marine and architectural applications, as well as in the production of machinery.
Stainless Steel 202 Hex Bars and rods are manufactured through processes like extrusion, forging, and cold drawing. The metal is heated, shaped, and then cooled to achieve desired dimensions. This process ensures uniformity, strength, and surface finish. Quality control during each stage guarantees durability, corrosion resistance, and precise tolerances in the final product.
Yes, Stainless Steel 202 Hex Bar/Rod can be welded easily using techniques like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. Preheating and proper filler materials are recommended to avoid cracking and maintain weld integrity.
202 hex bars and rods are applied to nuts, bolts, fasteners, and decorative fittings. They serve efficiently in manufacturing equipment, architectural hardware, and automotive assemblies. Chung Metal’s 202 hex bars provide steadfast strength and corrosion protection at an affordable price.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
