Aluminium 5083 Forgings

Chung Metal provides Aluminium 5083 forgings produced in Da Nang, Vietnam, intended for usage where superior corrosion resistance and fair strength are required. 5083 magnesium aluminium alloy is recognized for its performance in marine and cryogenic environments. Our forging process delivers consistent microstructure, close tolerances, and certification of mechanical and metallurgical properties. We produce forgings such as flanges, rings, and intricate shapes to the specific requirements of the client. Shipbuilding, pressure vessels, and coastal structures rely on our 5083 forgings to get durable, light, and corrosion-resistant parts.

Aluminum 5083 Press Forging Manufacturer in Hue, Aluminium 5083 Compression Forging Hanoi, Aluminium Alloy 5083 Impression Die Forging Size Chart, Aluminum Alloy UNS A95083 Upset Forging Dealer in Hanoi, Al 5083 Open Die Forging Price in Vietnam, Stockist of Aluminum 5083 in Sapa, DIN AlMg4,5 Aluminium Alloy Closed Die Forging Price List in Da Nang, Aluminum Alloy UNS A95083 Open Die Forging Weight Chart, Aluminium 5083 Closed Die Forging Exporter in Hue, Al 5083 DIN 3.3547 Closed Die Hammer Forging Supplier in Vietnam

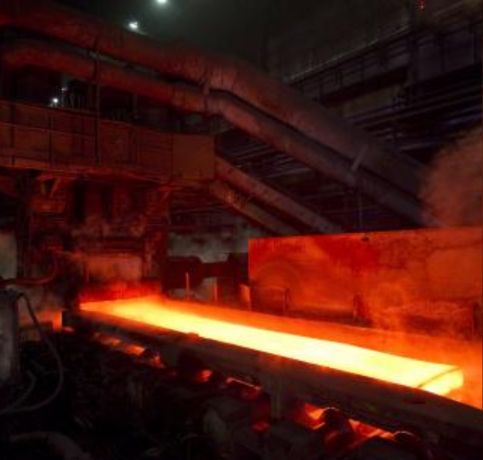

Aluminium 5083 Cold Forging

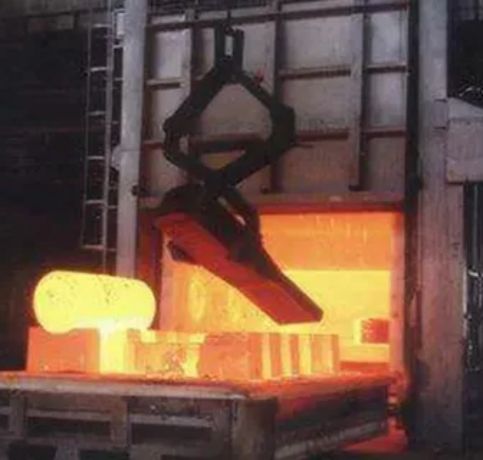

Aluminium 5083 Rolled Forging

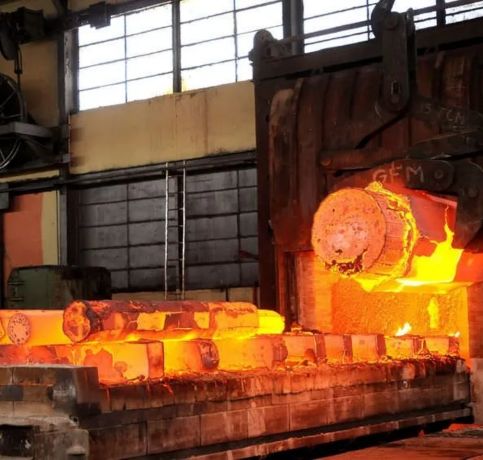

Aluminium 5083 Hot Forging

What is Aluminium 5083 Forgings?

Aluminium 5083 has ~4.0–4.9% magnesium, ~0.4–1.0% manganese, and trace chromium; balance aluminium. In the H116/H321 temper, tensile strength ~300–350 MPa, yield strength ~145–210 MPa, and elongation ~12–18%. Hardness is moderate. Density ~2.66 g/cm³. It has excellent corrosion resistance, particularly in seawater and salt spray, good weldability, and formability. Forging refines microstructure and enhances fatigue resistance, so 5083 forgings are stronger and more resistant than cast equivalents to cyclic conditions.

Aluminium 5083 Open Die Hammer Forging Stockist in Da Nang, Aluminum 5083 Impression Die Forging Distributor in Vietnam, Aluminium 5083 Cold Forging Stockist Hai Phong, 5083 Aluminium Alloy Open Die Forging Exporter in Vietnam, Aluminum Alloy DIN 3.3547 Compression Forging Price in Hai Phong, DIN 3.3547 Al Upset Forging Dimensions Sapa, Aluminium 5083 Forgings Supplier in Vietnam, Al 5083 Open Die Hammer Forging Supplier in Sapa, UNS A95083 Aluminium Alloy Press Forgings in Hue

Aluminium 5083 Forgings Specifications

Standards : ASTM B247, B247

Temper : H14

Specification : DIN, ASTM, BS and all International Standards

Flat bar blocks : up to 27″ width and 15,000 lbs.

Cylinders and sleeves : up to 50″ maximum O.D. and 65″ maximum length

Discs and hubs : up to 50″ diameter and 20,000 lbs.

Rolled, hand forged or mandrel forged rings : up to 84″ maximum O.D. and 40″ maximum length

Rounds, shafts and step shafts : up to 144″ maximum length and 20,000 lbs.

Aluminium 5083 Forgings Chemical Compositions

Al	Cu	Mn	Cr	Si	Fe	Ti	Mg	Zn	Other Each	Others Total
Bal	0.10 max	0.40 / 1.0	0.05 / 0.25	0.40 max	0.40 max	0.15 max	4.0 / 4.90	0.25 max	0.05 max	0.15 max

You Need Our Support, to Have Any Projects?

Test Certificate

Why Chung Metals?

Packaging

Aluminium 5083 Forgings Mechanical Properties

Tensile Strength	Hardness Brinell	Proof Stress	Elongation
275 – 350 MPa	75 HB	125 Min MPa	12 Min %

Aluminium 5083 Equivalent Grades

European Standard	OLD	WNr	UNS	ISO	USA (AA)	GERMANY (DIN)
AW-AlMg4,5Mn0,7	AG4,5MC	3.3547	A95083	AlMg4,5Mn0,7	5083	AlMg4,5Mn

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Aluminium 5083 Forgings Types

Aluminium Alloy 5083 Hot Forging Exporter in Hanoi, Aluminium 5083 Forgings Manufacturer in Hai Phong, Aluminium Alloy 5083 Forgings Industrial Forgings Distributor Exporter in Vietnam, Aluminum Alloy 5083 Seamless Rolled Forging Supplier in Sapa, Al 5083 Forgings Cold Forging Size Chart in Da Nang, Aluminium DIN 3.3547 Compression Forging Size Chart in Vietnam, UNS A95083 Aluminium Open Die Forging Stockist in Sapa, ASTM B221 Al Forging Price List Hue, Aluminum 5083 Press Forging Supplier in Vietnam

Frequently Asked Questions (FAQ)

How does the forging of Aluminum 5083 impact its corrosion resistance?

The forging of Aluminum 5083 enhances its corrosion resistance by refining its grain structure, improving its overall strength and resistance to saltwater corrosion, particularly in marine environments.

What are the advantages of using Aluminum 5083 for custom forgings?

Aluminum 5083 offers high strength, excellent corrosion resistance, good weldability, and formability, making it ideal for custom forgings in marine, aerospace, and other demanding applications.

How does the workability of Aluminum 5083 affect the forging process?

Aluminum 5083 offers excellent workability, allowing for easy forging. Its high strength, good corrosion resistance, and moderate formability make it ideal for complex shapes while maintaining durability and structural integrity.

Aluminium 5083 Forgings Uses

5083 forgings find extensive application in ship hulls, marine structural components, decks, bulkheads, and offshore structures. Also employed for pressure vessels, cryogenic tanks, and LNG containers because of satisfactory low-temperature behavior. Used in automobile and rail for crash structures and light frames. Architectural applications are facades, supports, and roof panels in coastal areas. Also applied in fuel tanks, marine fittings, and corrosion-resistant structural components. Due to its high magnesium level and strength, 5083 is best where there is frequent exposure to moisture and salt.
